Home » Products » Gang Drilling Machine » Gang Type Drilling Machine

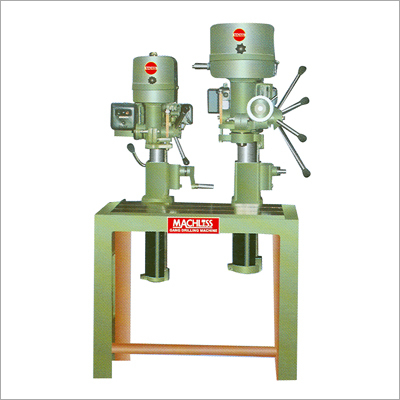

Gang Type Drilling Machine

Gang Type Drilling Machine
Gang Type Drilling Machine
Product Code : GDM 02
Brand Name : MODERN TOOLS
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
Product Description

Having in-depth market experience, we are engaged in manufacturing, exporting and supplying a high performing range of Gang Type Drilling Machine. This machine is manufactured under the guidance of adept professionals using top-grade components and highly advanced techniques. Cherished for smooth and flawless drilling operations, the provided machine finds application in heavy duty industrial as well as commercial premises. In addition, our clients can avail the offered Gang Type Drilling Machine at most economic prices from us.

Key points:

  • Longer service life
  • Excellent functionality
  • Requires less maintenance
  • Based on advanced techniques

Gang Drilling Machine
The Gang Drilling Machines are offered with two or more drilling units fitted on common table assembly. Common cast iron bench is made of close grained cast iron, is provided with machined T-slots and have common coolant channel all around it. The Gang Drilling Machine is fitted with drilling head of capacity 15mm to 32mm with drilling head (specification same as that of general drilling machines, Stated in the adjacent table). Drilling head, depending on the job height can be easily move upwards and downwards with help of worms and gears fitted in mounting coupling of drilling unit is called Gang Coupleen. This type of set up is highly suitable for mass production of same component with multiple operations at the same point or at same level of job face.

Specifications (in mm)

Common Table Assembly
Suitable for mounting of
Overall Size
Length & Width
Working Surface
Length & Width
Five Spindle Units
2140 x 540
2015 x 355
Four Spindle Units
1735 x 530
1620 x 350
Three Spindle Units
1320 x 540
1205 x 350
Two Spindle Units
910 x 530
780 x 350
Single Spindle Units
760 x 610
650 x 380

Height of common Table: 790 mm for E,, 830 for rest.

Distance between two spindle: 450 mm

No. of 'T' Slots: 2

Size of 'T' Slots: 12 mm

Max. distance from Spindles Nose to Table
  • 20 mm Drilling Head = 500 mm
  • 25 mm Drilling Head = 510 mm
  • 32 mm Drilling Head = 510 mm
Specifications (in mm) Applicable for Drilling Machines & Drilling Heads of Gang Drilling Machines.

Particulars
1
2
3
4
5
6
7
8
Drilling Capacity
12 mm simple
15 mm simple
15 mm geared
20 mm simple
20 mm geared
25 mm geared
32 mm geared
40 mm geared
Spindle Travel
75
100
100
120
120
150
160
185 mm
Spindle Centre to Column
160
175
180
220
220
260
285
385 mm
Spindle Nose to Table (Max.)
380
480
580
570
585
715
620
700
Spindle Nose to Base (Max.)
395
600
700
760
760
1065
1025
1030
Column Diameter
47
58
58
74.5
74.5
87.5
98.5
125
Morse Taper in Spindle
As per JUG
Drill Chuck
MT-2
MT-2
MT-2 MT-2 MT-3 MT-4 MT-4
Table Shape
Round
Round
Round
Round
Square
Square
Round
Round
Table Size
195 Dia
230 Dia
230
275 Dia
280 x 280
340 x 340
500
500
Base Working Area
200 x 200
220 x 220
220 x 220
275 x 275
275 x 275
310 x 320
370 x 370
460 x 480
Floor Area Required
355 x 210
420 x 240
420 x 240
500 x 300
500 x 300
685 x 410
740 x 480
880 x 575
No. of Speeds
4
4
8
5
8
8
8
8
Spindle Speed with 1440 RPM Motor
725, 1175, 1880, 2950
700, 1150, 1760, 2650
160, 256, 395, 615, 700, 1150, 1760, 2650
640, 865, 1210, 1695, 2350
2990, 1725, 1065, 575, 485, 265, 166, 85
540, 779, 1080, 1490, 250, 180, 130, 90
80, 119, 175, 250, 450, 660, 980, 1420
-
Spindle Speed with 960 RPM Motor
530, 840, 1560, 2650
475, 865, 1475, 2265
-
425, 575, 805, 1130, 1568
1190, 1150, 710, 380, 315, 184, 105, 58
370, 530, 735, 990, 170, 125, 90, 64
55, 95, 135, 185, 335, 440, 735, 1065
160, 220, 300, 400, 520, 700, 925, 1225
Total Height of Machine
870
970
1140
1230
1310
1700
1820
1875
Motor Required
1/2 HP
1/2 HP to 1 HP
1/2 HP to 1 HP
1 HP
1 HP
1.5 HP
2 HP
3 HP
V-Belt Size
A-36
A-39/38
A39/38
A-44/43
A-44/43
B-52/51
B-57/58
B-62
Machine Weight without Electrical
40 Kg.
65 Kg.
85 Kg.
100 Kg.
110 Kg.
210 Kg.
310 Kg.
475 Kg.
Machine Weight packed without Electrical
95 Kg.
108 Kg.
140 Kg.
160 Kg.
176 Kg.
285 Kg.
470 Kg.
640 Kg.
Auto Feed Rate
-
-
-
-
-
-
-
0.04 to 0.1 mm/Rev. (3 Feeds)
Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Supply Ability
  • Customize Per Month
  • Delivery Time
  • Days
  • Packaging Details
  • Pack with Gunny bags.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
