Pitch Control Tapping Machine

Pitch Control Tapping Machine

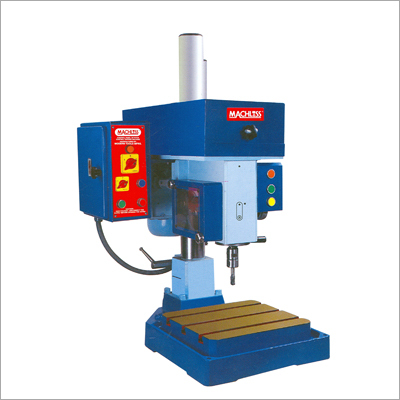

Pitch Control Tapping Machine
Product Code : TM 03
Brand Name : MODERN TOOLS
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
Product Description

Being a trusted entity of this field, we are endeavoring to manufacture, export and supply the best quality gamut of Pitch Control Tapping Machine. The offered machine is manufactured with the use of optimum quality components as per international quality standards. Based on precision gear mechanism, this machine finds its important application in automotive works and fabrication units for performing operation on work piece. Moreover, clients can purchase the provided Pitch Control Tapping Machine at reasonable prices from us.

Key points:

  • Generates less vibrations
  • User-friendly operations
  • Longer life
  • High efficiency


Salient Features

  • Closed grained cast iron ribbed machine parts, minimise vibration and distortion.
  • All moving parts are hardened and ground for long life.
  • Bore honed to give high accuracy and close tolerance.
  • Rack pinion also provided with feed friction clutch. These are designed to be idle on encounter of any obstacle or meeting any wrong point on tapping.
  • Hardened change gears controls the pitch, which gives precise and rapid production of high accuracy. This reduces the set time and increase production.
  • Main spindle pulley mounted with manually adjustable safety clutch.
  • The change gears are used over and over again. This way conventional lead screw and nut are replaced; which have a poor repeatability and short life span.
  • Threads are never fractured or over cut due to elimination of excessive thrust force of feeding spindle.
  • Tapping strokes are adjustable for high accuracy automatic reversing which is specially important for blind hole tapping applications.
Particulars
Models

MACH - 01.10
MACH - 02.20
MACH - 03-30
Tapping Cap
In Steel
In Cast Iron
10 MM
12 MM
20 mm
22 MM
30 MM
33 MM
Spindle Travel
45 MM
65 MM
70 MM
Distance Between Spindle Centre To Column
210 MM
260 MM
285 MM
Vertical Travel of Tapping Head
410 MM
450 MM
460 MM
Column Dia
74 MM
87 MM
98 MM
Spindle Speeds
400-750-1510
157-280-510
50-105-216
Motor Rating
KW
HP
0.75
1
1.1
1.5
1.5
2
Net Weight Kg
110
220
260
Tapper In Spindle
May vary from morse tapper (MT) size to collet system depending on job requirements.
Base Working Area
230 x 240 MM
345 x 385 MM
360 x 400 MM
Floor Area Required
320 x 490 MM
470 x 610 MM
500 x 655 MM
Standard Tapping Pitches
In MM
0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5,
1.0, 1.25, 1.5, 1.75, 1.8, 2.0, 2.5
1.5,  1.75, 1.8, 2.0,2.5, 3.0, 3.5, 4.0,
In TPI
18, 20, 22, 24, 26, 27, 28, 32, 36, 40
10, 11, 11.5, 12, 13,  14, 16, 18, 20, 22
7, 8, 9, 10, 11, 12, 13, 14
Minimum No of Strokes
40
15
8
  • Capacity varies according to pitch material, type of thread etc.
  • Optional pully available subject to material and thread.
  • Standard equipments - Electrical panel, Electrical motor, Pully, V-belt & Two set of Gears for any pitch required.
